Quick Details
Standard | AISI, ASTM, BS, DIN, GB, JIS, AISI, ASTM, BS, DIN, GB, JIS |
Grade | Q235 Q345B |
Dimensions | Customers' Requirement |
Place of Origin | Tianjin, China (Mainland) |
Brand Name | Kimton house |
Model Number | Q345 |
Type | Light |
Application | Steel Fabricated House, Warehouse/Workshop/Shed |
Color | Customized Color |
Surface treatment | Painted or Hot-dip Galvanized |
Material | Steel Structure + Sandwich Panel |
Certificate | ISO9001:2008 |
Column | Welded H Beam |
Wall and Roof Panel | Eps , Glass wool, Rock wool and PU sandwich panel |
Door | Sliding Door or Rolling Door |
Window | PVC/Aluminum Alloy Window |
Product Description
Steel Structure Workshop, Prefabricated Steel Structure Building:
1 | Light weight, high strength, 50years durable use, no construction waste |
2 | Quality certification ISO: 9001: 2008 |
3 | Cost considering: Time saved, cost saved |
4 | Easy move, materials can be recycled used, environmentally |
5 | Used widely, used as factory, warehouse, office building, aircraft hangar etc |
6 | Structural durabilities, easy maintenance |
Technical Parameters

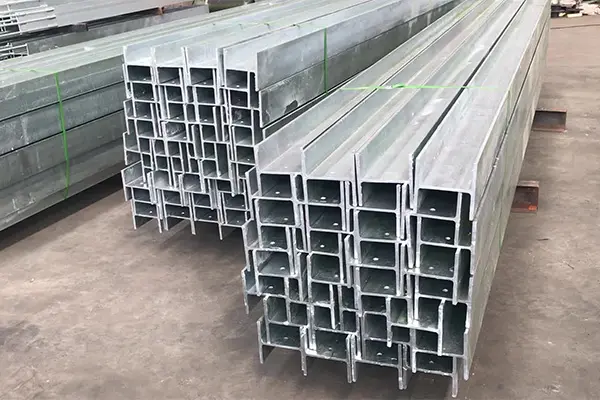

Main Steel Structure | Use build-up steel column, welded H-beam steel |
Purlin | C-type steel |
Roof panel | Single steel sheet or sandwich panel |
Wall panel | The same to roof panel |
Tie bar | Welded-round tube |
Brace | Round steel |
Column brace and lateral brace | Angle steel |
Crane | 3T-30T |
Angle brace | Hot-rolled angle steel |
Edge | Color plate |
Gutter | Stainless steel |
Down pipe | PVC Pipe |
Door | Sandwich-panel door or Rolling door |
Window | Aluminum alloy window or PVC window |
This building can used forPrefabricated House, steel structure building, steel structure workshop, steel structure warehouse, steel structure storage, steel structure station, light steel structure etc.
SIZE(m) | LENGTH*WIDTH* EAVE HEIGHT |
TYPE | SINGLE SPAN, DOUBLE SPAN, MULTI-SPAN. ONE FLOOR, TWO FLOORS, THREE FLOORS. |
BUILDING FOUNDATION | STEEL FOUNDATION WITH ANCHOR BOLTS. |
COLUMN & BEAM | MATERIAL:Q235 & Q345 & Q420. |
BRACING | X or V TYPE BRACING MADE BY ANGEL STEEL, ROUND Bar etc. |
Wall & Roof C or Z PURLINE | SIZE: C120~C320mm; |
Z100~Z300mm. | |
WALL & ROOF PANEL | SINGLE CORRUGATED STEEL SHEET; |
SANDWICH PANEL INSULATION WITH EPS, PU, ROCK WOOL etc. | |
WINDOW & DOOR | PVC or ALUMINIUM ALLOY WINDOW; |
ELECTRIC ROOL-UP DOOR; | |
SLIDING DOOR BY SANDWICH PANEL OR SINGLE CORRUGATED STEEL SHEET. | |
Surface Treatment | HOT GALVANIZED COATING |
COLD GALVANIZING | |
Spray-Painting, Any color, according to your request. | |
ACCESSIORES | SEMI-TRANSPARENT SKYLIGHT BELTS; |
VENTILATORS; DOWN PIPE; GUTTER; | |
STANDARD BOLTS. |
PRODUCT ADVANTAGE
High quake-proof, water proof and fire proof.
Easy to install and maintenance.
Fast construction, save time and labor cost.
Prefabricated and customized design.
High space efficiency.
Life time: Over 25-50years.
Environment friendly.
Nice appearance.
DELIVERY & PACKING
With more than 4000tons capacity each month, deliver time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.

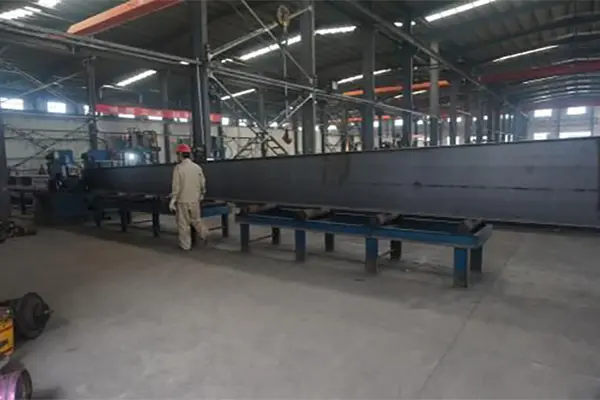

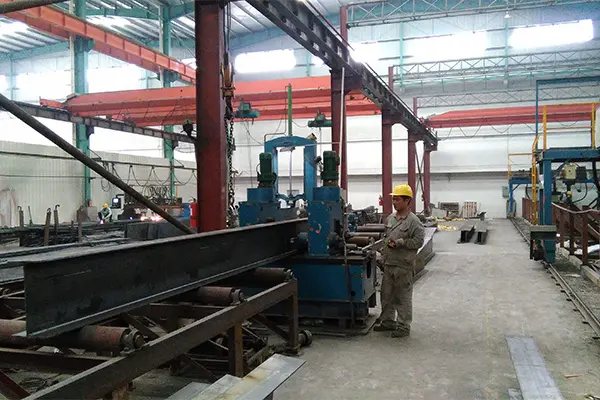

STEEL STRUCTURE WORKSHOP WAREHOUSE BUILDING MANUFACTURING PROGRESS:

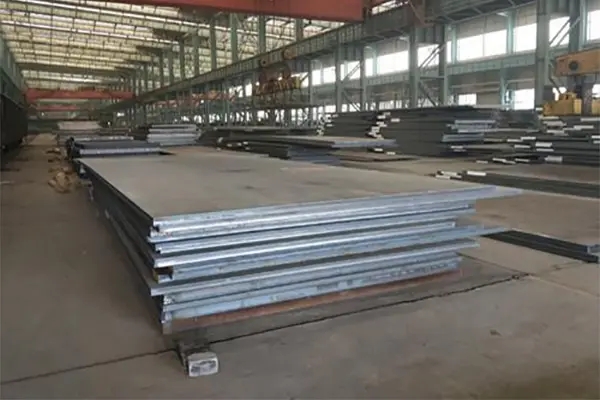

Prepare Materials

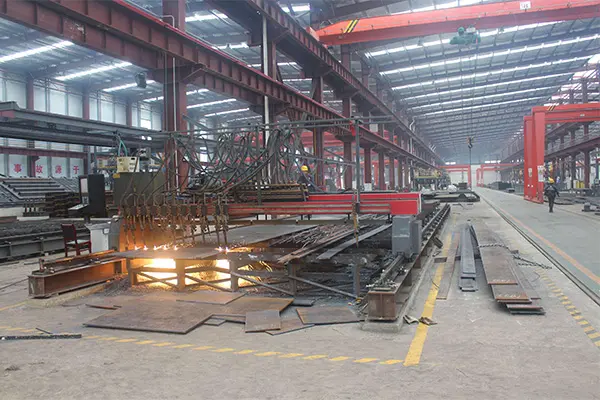

Cutting
Assembling
Adjustment

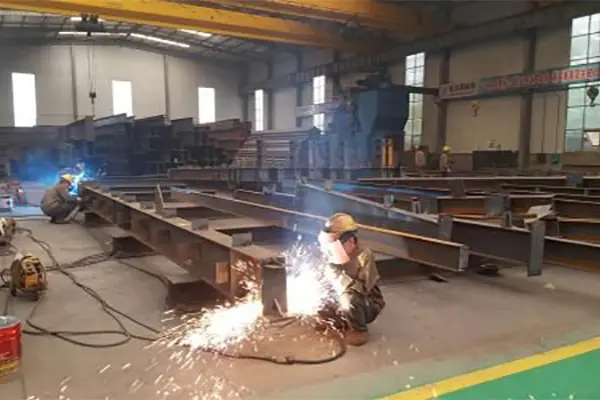

Welding Connection Plate

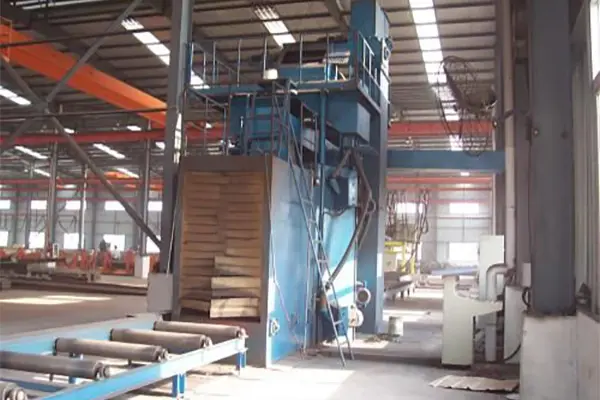

Shot Blasting And Polishing

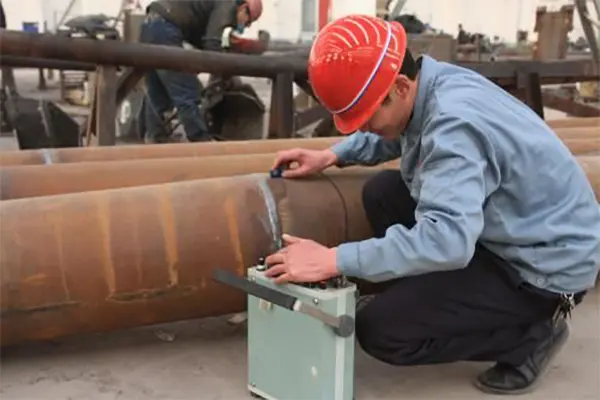

Quality Control

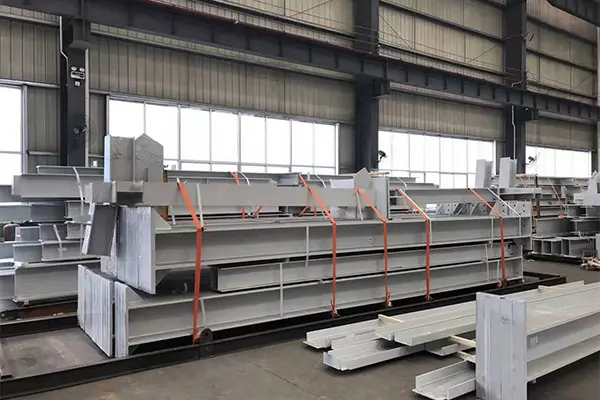

Painted or Galvanized
Packing and loading
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1. Location (where will be built? ) _____country, area.
2. Size: Length*width*height _____mm*_____mm*_____mm.
3. wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s.
4. snow load (max. Snow height)
_____kn/m2, _____mm.
5. anti-earthquake _____level.
6. brickwall needed or not If yes, 1.2m high or 1.5m high.
7. thermal insulation If yes, EPS, fiberglass wool, rock wool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. door quantity & size _____units, _____(width)mm*_____(height)mm.
9. window quanity & size _____units, _____(width)mm*_____(height)mm.
10. crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m.

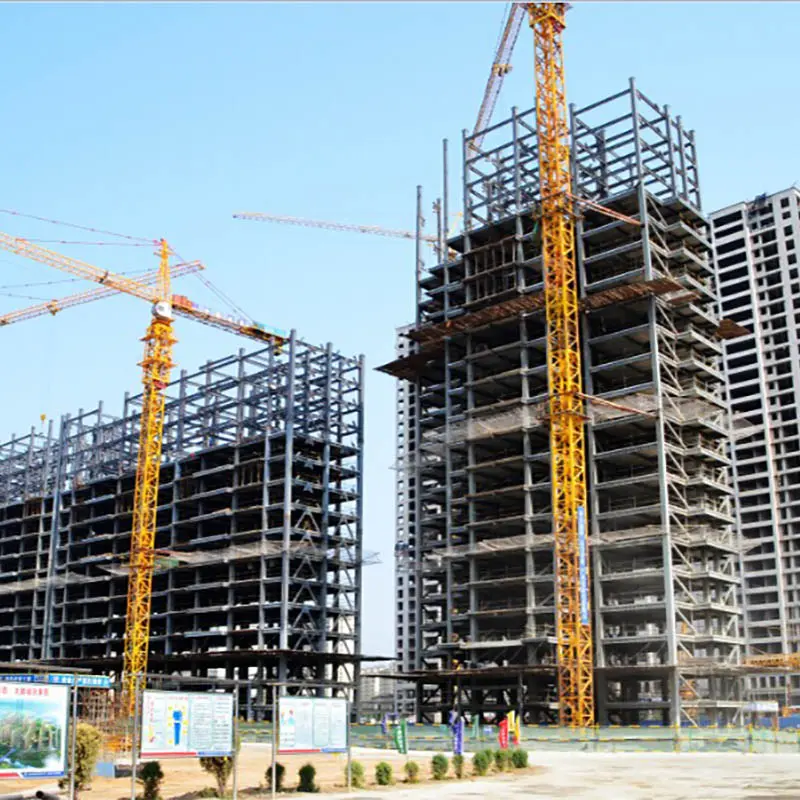

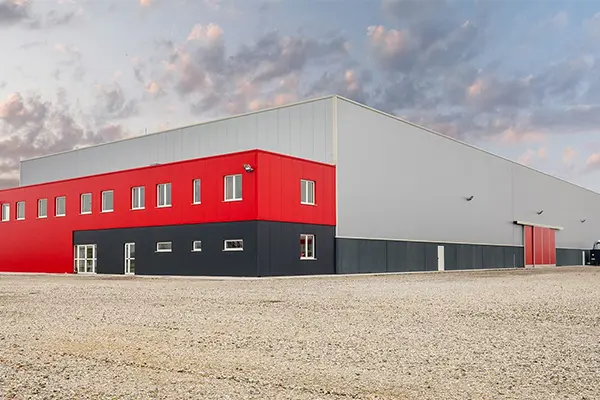

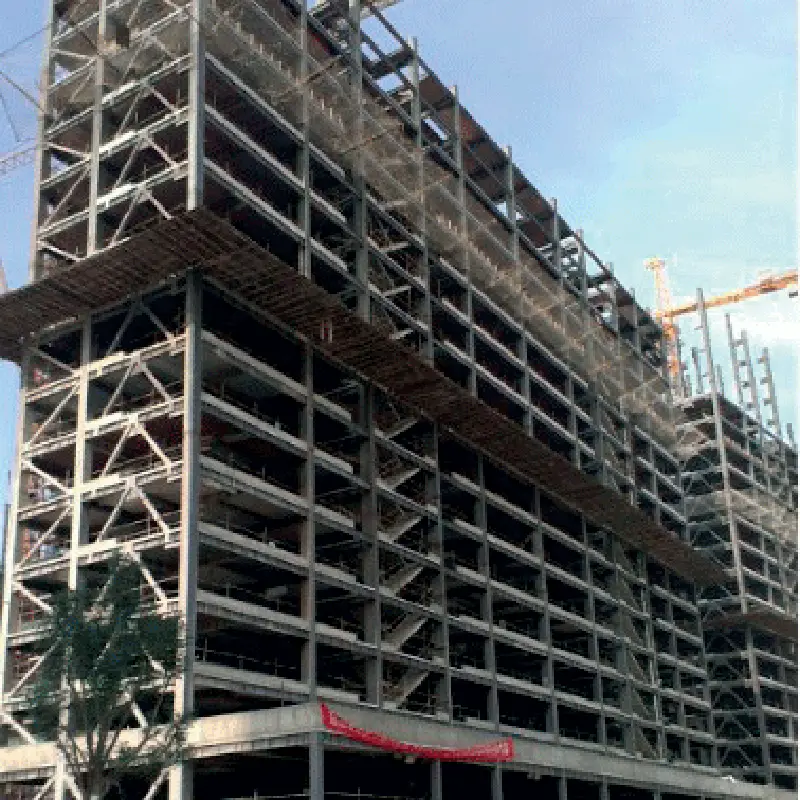

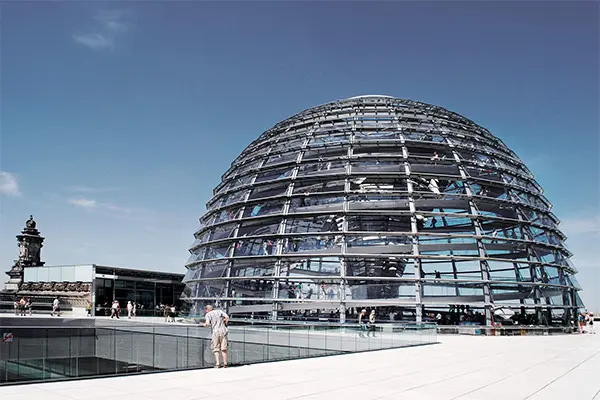

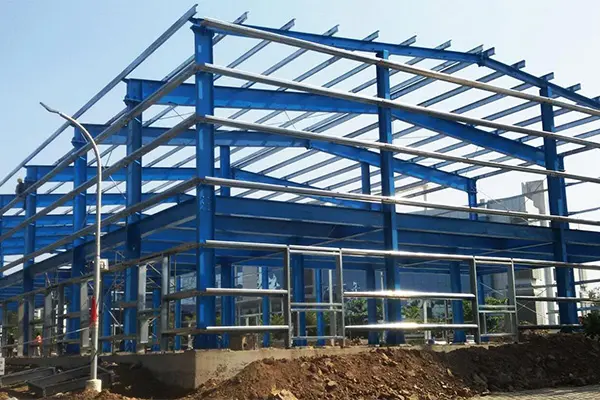

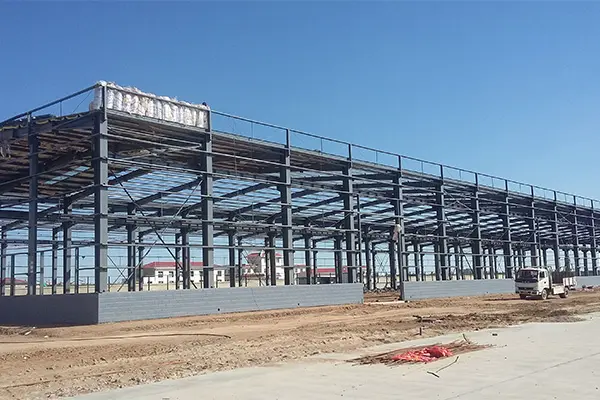

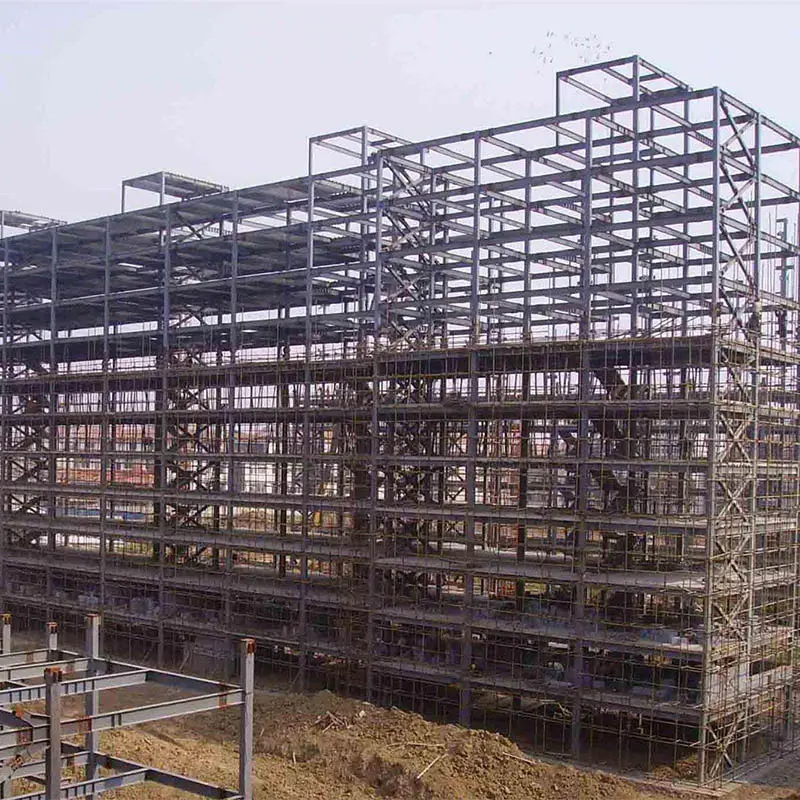

Our projects
